NL 8500
SYSTEM

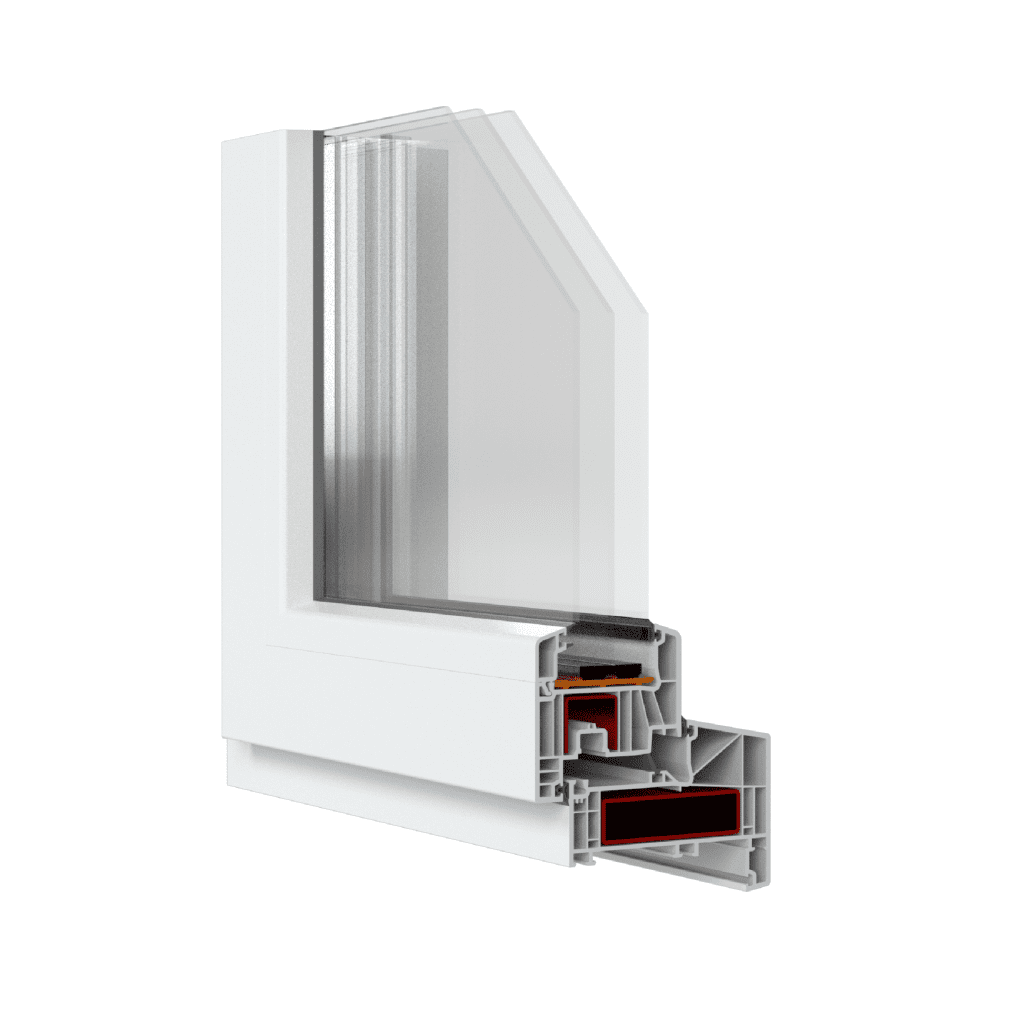

NL 8500 System is engineered for traditional Dutch-style window applications, combining architectural depth with modern performance standards. Featuring a robust 120 mm wide frame, the system delivers enhanced structural stability and refined façade integration.
Its extended frame geometry supports improved thermal insulation and design flexibility, making it ideal for renovation projects and region-specific architectural requirements.

Full Technicial Specifications

  • Profile width: 120mm
  • Number of chambers: Multichambered
  • Profile class: A class

  • Number of gaskets: 3

  • Seal type: External/Internal triple seal system

  • Seal color: Gray/Black

Profile
width

120 mm

Profile
class

A Class

Number
of gaskets

3

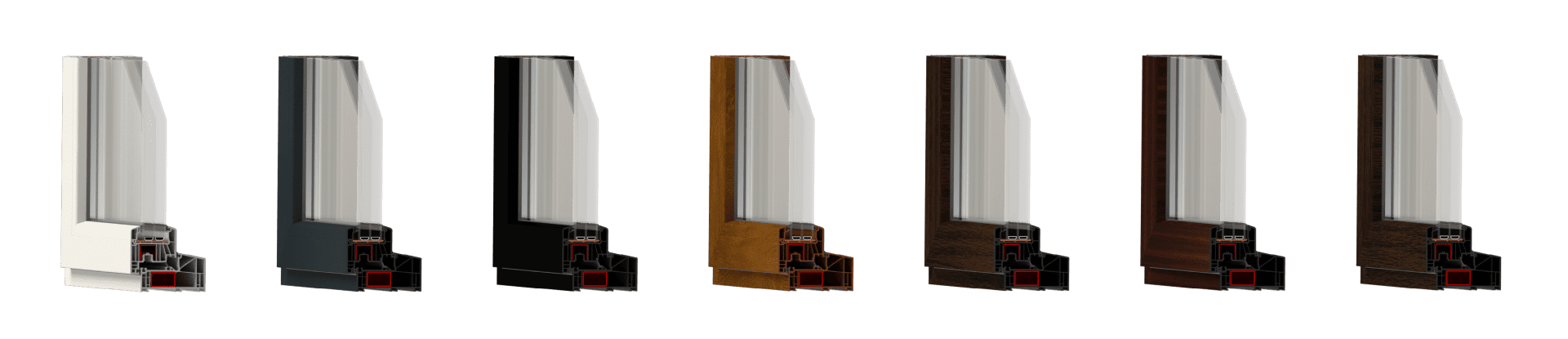

Available Profile Color

White

Anthracite

Dark Oak

Golden Oak

Mahogany

Nussbaum

Jet Black

The system is built around dedicated 120 mm frame profiles, including frame versions with and without cornice, as well as integrated mullion and false mullion profiles to support complex window configurations.

For enhanced structural performance, NL 8500 offers optional steel reinforcement within key load-bearing components. In larger window constructions, selected profiles can also accommodate aluminium reinforcement, increasing rigidity and resistance to structural stress.

This reinforced profile architecture ensures improved load distribution, long-term durability, and reliable performance in deep-frame applications typical for Dutch installation systems.
